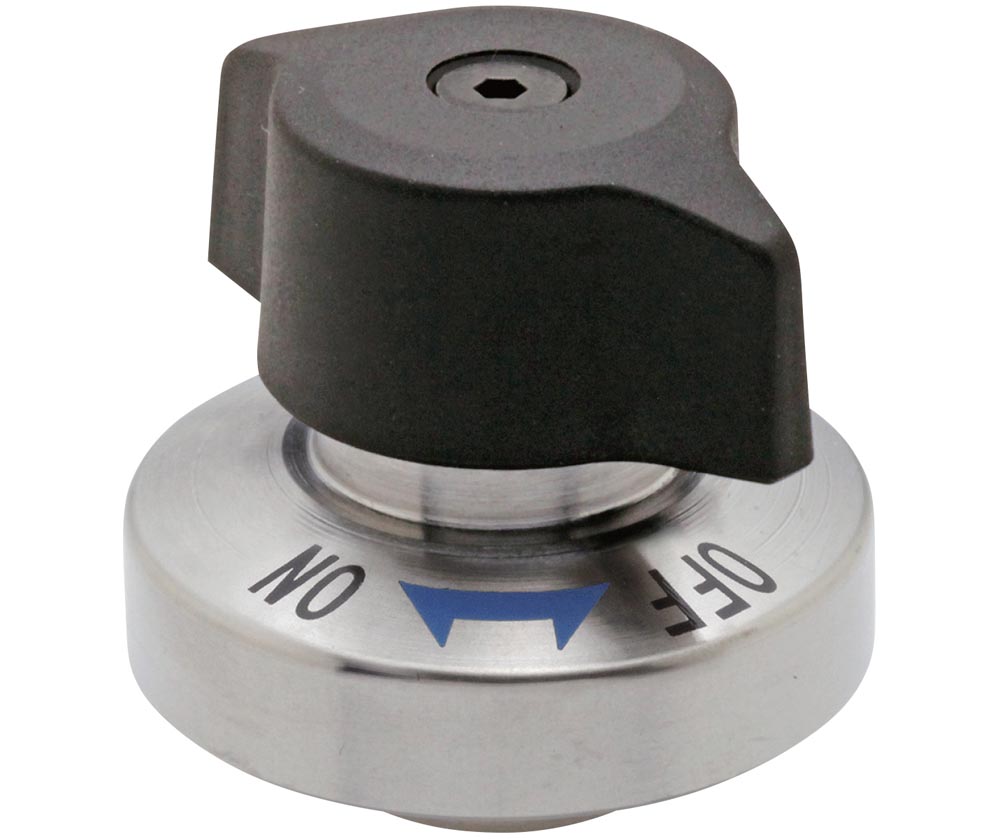

These quarter turn fasteners provide positive locking in quick change applications where there are frequent insertion and removal of a fixture. They allow for consistent fastening force eliminating the chance for under or over tightening by the operator. The fastener is mounted to the fixture and the pin (sold separately) is mounted to the base. After placing the fastener on the pin, turning the knob one quarter turn locks the fastener into place with four balls. The fasteners are marked with "ON" and "OFF" indicators to show the position of the fastening pins. They can be used with locating pins to provide highly accurate positioning. The body is made from nickel-plated 1045 steel or 303 stainless steel. The knob is made from black plastic. The balls are made from 440C stainless steel. The spring is made from 304 stainless steel. The socket head cap screws for mounting are included.
New Fastener Review at Pipeline Design & Engineering
Fixtureworks Quarter-turn One-Touch Fasteners
"Our mission statement here at Pipeline is to build equipment that R&D and manufacturing teams LOVE to use. One of the ways we do that is by using hardware that operators enjoy interacting with, like these quarter turn fasteners. We’ve used them for years and continue to do so not just because we like them, but because our customers love using them."Read More
