Quick Release One Touch Fasteners for Quick Changeover

cc



Reduce setup times by quick and easy tool-less clamping.



  One-Touch Fasteners are designed for frequent changeover of machinery or fixtures.

Quick and easy tool-less clamping reduces setup times for quick changeover.

Imao's quick release fasteners are available in various clamping styles, quarter-turn fasteners, ball locking fasteners and pin holding.



Product Video - Quick Change Fasteners



Product Video - Additional Lineup of Quick Change Fasteners by IMAO



Product Features



Quick & Easy Locking!

Simply turn the knob or push the button to lock and unlock. No time wasted on tightening screws and nuts.

cc



Secure Clamping

Secure clamping with cam locking / ball locking mechanism.



Visible Safety

Quarter turn fasteners have clearly visible ON and OFF markings. Ball lock fasteners clamp the part when the button is released.

cc



Application

IMAO's quick release fasteners offer a changeover solution on packaging, food processing, printing machines, or on assembly and checking fixtures.

cc
cc
cc



Case Studies



Case 1: Quarter Turn Fastener reduced fixture changeover time by half!

cc

Toyokawa Engineering manufactures testing equipment for automotive parts and they use IMAO's Quarter Turn Fasteners on the fixtures in their equipment.

They designed fixtures to hold several workpieces at a time to fit the user's needs. Setups for changing fixture parts come out every changeover depending on the workpieces. The user required Toyokawa the swift changeovers of fixtures over two times a day. Toyokawa chose to use IMAO's Quarter Turn Fasteners for changeovers, which decreased setup time by clamping with just a 90 degrees turn of the knob.

On previous testing equipment, the user fixed the parts with screws and knobs. This required more than a minute for changeover.

With Quarter Turn Fasteners, changeover of the fixtures was reduced to only 30 seconds. Toyokawa knows firsthand how quick and easy to operate IMAO's tool-less clamps and the wide variety of fasteners that are available to choose from, available in IMAO's line of standard machine elements.

Toyokawa will keep using Quarter Turn Fasteners for their equipment in the future.



Case 2: Quick & Easy changeover in injection molding machine!

Panasonic Eco Solutions Electrical Construction Materials Mie Co., Ltd. manufactures intercom and fire alarm for homes and they use IMAO's Quarter Turn Fasteners on injection molding line for the resin products.

They cut the resin burr on back of the post-molded products with a nipper. Setups for changing the nipper and its position come out every mold change because the position of the burr varies from product to product.

In the previous line, they used the general-purpose nipper units for all products and it took more than 15 minutes to loosen screws, change nippers and adjust positions.

Panasonic Eco Solutions were required to change their mold more than 50 times per month on some machines. They decided to use dedicated nipper units for each product and clamp the units with Quarter Turn Fasteners to reduce machine downtime and set-up time.

As a result, the changeover of units was reduced to only 1 minute with One-Touch Quarter Turn Fasteners. Furthermore, the clear ON/OFF clamping markings on the knob increased safety on their plant, and the shortening the time needed for operation and changeover improved production system effiency.

cc



Case 3: Complicated changeover in assembling machines became simple!

Iwata Mfg, Co., Ltd. manufactures machine components such as set collars and sensor brackets and they use IMAO's Ball-Lock Clamps and Button-Locking Pins to replace fixtures of automated production machines to assemble screws to the machinery parts body (hereinafter called "workpiece").

Previously, this work was done by a person but because of the high labor costs and the worker's mental burden for continuing simple tasks, they designed their own automated machine for purpose of reducing costs and mechanization of the simple work. This application requires "changeovers" which replace various fixtures depending on the workpiece around 10 times a day since this machine produces many products with different shapes and sizes, so they decided to use IMAO's One-Touch Fasteners to reduce the workloads.

In the process of setting the workpiece that was placed in a free direction to the right position, they clamp the workpiece from either side using an air cylinder with the plastic pad and adjust it by rotating. They use Ball-lock Clamps to fix the pad to replace 11 types of plastic pads depending on the form and size of the workpiece.

In another process of assembling screws to the workpiece, depending on the screw size, there are 5 kinds of holders for carrying screws and guides for preventing screws from dropping, and they can be quickly replaced by using the Button-Locking Pins. These fasteners only require inserting the pin or pushing the button, so the changeover can be completed easily and in a short time.

The easy changeover process also reduces the machine operator's workload, as there are many parts that need to be replaced in a single changeover. They will keep continuing the development of automated machines that allow quick and easy changeovers to reduce the costs and the workloads.

cc



Case 4: Standardized quick release fasteners cut fixture costs by 70% and eliminated fixture maintenance!

Cosel Co., Ltd. manufactures "switching power supplies" that are indispensable for electronic products and they use IMAO's Quarter Turn Fasteners on assembly fixtures. They set the electronic substrate on the base plate and put the resin case. Set the clamping plate on the base plate, clamp, pour silicone rubber, and then do heat hardened treatment. They use Quarter Turn Fasteners when fixing the resin case with the clamping plate.

Previously they used self-produced clamps, so a lot of cost and production time was required. In addition, they often stopped the production line for repairing the damaged clamps due to the loosening screws caused by heat hardening distention. A total of 80 fixtures are used per the assemble product in their production line, so they decided to use Quarter Turn Fasteners to achieve cost reduction and maintenance-free of the fixtures.

Furthermore, the tool-less and quick clamping Quarter Turn Fasteners were perfect for the workability since they produce approx. 200 products per day. By using Quarter Turn Fasteners, they succeeded in not only reducing the fixture cost by 70% but also have been using more than 2 years without any maintenance that previously needed once a week.

Cosel has achieved great success by standardizing the clamps and will definitely keep using IMAO's One-Touch Fasteners for the ones needing quick clamping.

cc



Case 5: Button-Locking Pin assisted easy operation on laboratory device!

BioChromato designs and manufactures analyzers and evaporators for the Institute of Physical and Chemical Research. They use two types of IMAO's One Touch Fasteners on the evaporator which extracts particular solvent from the sample liquid.

Multiple vials with liquid are set in the holder to evaporate, and the vial holder is removed from the evaporator after evaporation, but the vial holder reaches high temperatures up to 100°C. That's why they use Button-Locking Pins for a detachable knob. Finger-operative shape and ball lock mechanism enable quick and secure changeover operation of the vial holder.

In addition, they use IMAO's Quarter Turn Fasteners to fix the plug holder that plugs into whole vials at once. Just a quarter turn of the knob enables locking/unlocking the plug holder and allows easy changeover.

The vial holders should be replaced after each experiment and the plug holders should be replaced every time the size of the vial changes, so customers of BioChromato are satisfied with one-touch changeover.

cc



Case 6: Quarter Turn Fastener provided quick and reliable fixture changing!

TGK develops control devices for automobiles worldwide and they use IMAO's Quarter Turn Fasteners on assembly fixtures for motor actuators.

In the process of assembling the bracket to the actuator, they use four types of dedicated fixtures. The operator needs to change the fixtures every time the actuator to be assembled changes. They used to clamp the fixtures with wing screws, but it was not only troublesome to turn the screws many times, but also time-consuming to find the removed screws when they were lost.

This led them to search for a better way to clamp the fixtures as the operators requested for improvement, and they decided to use IMAO's Quarter Turn Fasteners. One touch operation of Quarter Turn Fasteners provides quick and easy fixture changing and ON/OFF marking improves the reliability of the operation, so the operators are satisfied with IMAO's quick fasteners.

TGK plans to use IMAO's One Touch Fasteners in their new assembly lines in order to shorten the setup time and simplify the changeover.

cc



Application Examples

cc

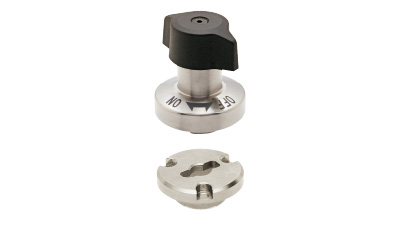

Quarter Turn Clamps

High clamping force
ON / OFF indicator for safety
Available in stainless steel
cc
cc
cc

RETRACTABLE QUARTER TURN CLAMPS

The shank retracts to enable slide or door applications
High clamping force
ON / OFF indicator for safety
Available in stainless steel
cc
cc



cc

HEAVY DUTY QUARTER TURN CLAMPS

The highest clamping force of 400N
ON / OFF indicator for safety
cc
cc
cc

RETRACTABLE HEAVY DUTY QUARTER TURN CLAMPS

The shank retracts to enable slide or door applications
The highest clamping force of 400N
ON / OFF indicator for safety
cc
cc



cc

KNOB-LOCKING PINS

Clamp action sensing
High holding capacity by wedge
ON / OFF indicator for safety
Available in stainless steel
cc
cc
cc

BUTTON-LOCKING PINS

Secure locking upon releasing button
High holding capacity by wedge
Available in stainless steel
cc
cc



cc

PIN HOLDING CLAMPS

Suitable for space-saving application
High holding capacity by wedge
Available in stainless steel
cc
cc
cc

SNAP-IN CLAMPS

Quick & easy snap-in operation
Suitable for space-saving application
High holding capacity by wedge
Made of stainless steel
cc
cc



cc

HOLE HOLDING CLAMPS

No need for receptacle
Secure locking upon releasing button
High holding capacity by wedge
Made of stainless steel
cc
cc

SHAFT COUPLING CLAMP

Multipurpose coupling element
Easy to clamp/unclamp by turning 90°
cc
cc



cc

BALL-LOCK CLAMPS

Compact & safety mechanical locking
Safety lock type is available
cc
cc
cc

MAGNET-LOCK CLAMP

Compact & instant magnetic attachment
cc



Precision Locating Fasteners



cc

ONE-TOUCH FLEX LOCATOR (Knob)

Quarter turn clamping
0.01mm repeatability
600N clamping force
cc

ONE-TOUCH FLEX LOCATOR

Quarter turn clamping
0.01mm repeatability
700N clamping force



cc

ONE-TOUCH FLEX LOCATORS (Cam Handle)

Vertical handle operation
0.008mm repeatability
1800N clamping force
cc

ONE-TOUCH FLEX LOCATOR

0.008mm repeatability
4500N clamping force



Lineup

QCBA-M

Ball Lock Pins

Use with QCBA receptacles, steel

QCMA-M

Clamping Pins

Magnetic locking, steel

QCPC-M

Clamping Pins

Use with pin holding fasteners, stainless steel

QCWE

Fasteners

Ball lock, plastic or stainless knob

QCBU

Fasteners

Ball lock, recessed handle, steel

QCBU-SUS

Fasteners

Ball lock, button handle, stainless steel

QCBUS

Fasteners

Ball lock, cylindrical, steel or stainless

QCOW

Fasteners

Pin holding, snap-in, with or w/o dome, steel

QCHC

Fasteners

Expanding pin, stainless steel

CP722

Flex Clamping Locators

Adjustable handle, tapered or straight

QCTH

Quarter-Turn Fasteners

Plastic or stainless knob

QCTHL

Quarter-Turn Fasteners

Low profile, stainless steel knob

QCTHH

Quarter-Turn Fasteners

Low profile, internal hex head

QCTHA

Quarter-Turn Fasteners

Retractable, plastic or stainless knob

QCPC

Quarter-Turn Fasteners

Pin holding, plastic or stainless knob

QCTHS

Quarter-Turn Fasteners

Heavy duty, plastic or stainless knob

QCSJ

Quarter-Turn Fasteners

Shaft mount, steel

QCTHSA

Quarter-Turn Fasteners

Heavy duty, retractable, plastic or stainless knob

CP727

Receivers

Use with knob and handle style Flex locators

CP725

Receivers

Use with Flex CP720 locators

CP726

Receivers

Use with Flex CP721 locators

QCTH-B

Receptacles

Embedded mount, use with quarter-turn fasteners, steel or stainless

QCTH-N

Receptacles

Thin plate mount, use with quarter-turn fasteners, steel or stainless

QCBU-M

Receptacles

Use with ball lock fasteners, threaded, steel or stainless

QCBAS

Receptacles

With safety lock, use with QCBA-M pins, steel

QCBA

Receptacles

Use with QCBA-M pins, steel

QCMA

Receptacles

Magnetic locking, use with QCMA clamping pins

QCTHS-B

Receptacles

Embedded mount, use with heavy duty quarter-turn fasteners, steel

QCSJ-S

Receptacles

Use with QCSJ shaft mount fasteners, steel

QCSJ-B

Receptacles

Flanged plate, use with quarter-turn shaft mount fasteners, steel

QCWE-S

Receptacles

Detects fastener clamping by sensor, stainless steel, use with quarter-turn fasteners
