Flex Locators from IMAO Fixtureworks

Locate & Fasten for Quick Changeovers

flex locators


IMAO Fixtureworks (Fraser, MI) offers a complete lineup of precision Flex Locators that includes new handle styles and air-assisted versions.

March 9, 2021

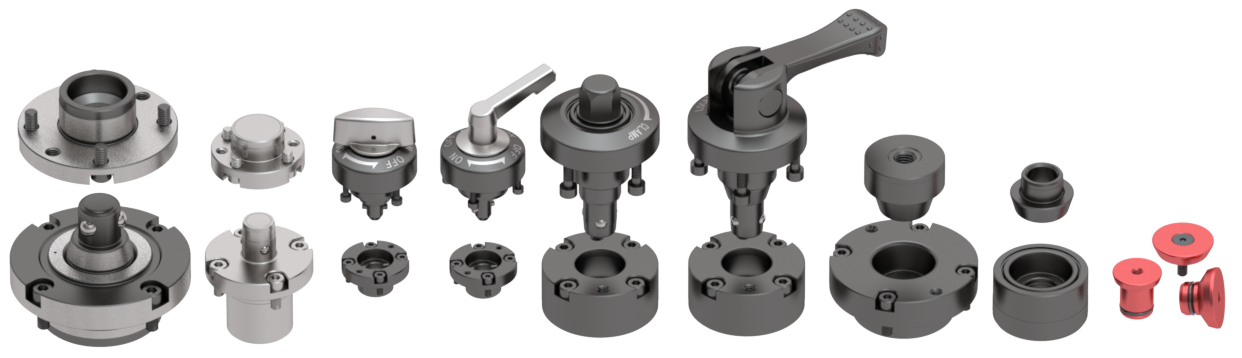

The Flex Locator System consists of tapered pins and receiving bushings. In combination, these pairs are designed to be mounted on fixture bases and plates to allow for highly accurate locating and positioning with repeatability of +/-.01mm. This system allows for fast and accurate fixture changes, mounting the same fixture on different machines, machining from five sides on one fixture, and quick fixture setup.


IMAO Fixtureworks offers a wide variety of Flex Locator styles to meet your application needs.


Handle, Knob and Cam handle styles allow for quick one touch handle operation for precision locating and fastening.


Hex style ball-lock locators provide 1011 lbs of clamping force in addition to precision locating. An adjustable torque wrench is also available to loosen and tighten the hex fastener.


IMAO Fixtureworks also offers basic solutions for locating, including easy-to-use Blind-style and Through-style locators.


For automated control, Air Flex locators are available. These air assisted locators allow for remote-control activation and simultaneous release of multiple locators.


IMAO Fixtureworks manufactures and supplies a wide assortment of unique industrial products that range from modular fixturing components and workholding devices, including clamps, workholding gripper inserts, supports, and locators, to standard machine elements, including pins, material handling rollers and bumpers, fasteners, adjustable handles, cam levers, and more.


To see the entire line of Flex Locators, click here: https://www.fixtureworks.net/store/pc/Flex-Locators-c13.htm


Flex Clamping Locators

Adjustable handle, tapered or straight


Flex Clamping Locators

Hex head, tapered or straight


Flex Clamping Locators

Cam handle, tapered or straight


Protective Covers

Use on CP735 Flex receivers


Protective Covers

Use on CP725 Flex receivers


Protective Covers

Use on CP726 Flex receivers



Use with knob and handle style Flex locators



Use with hex and cam style Flex locators, tapered or straight



Use with Flex CP720 locators



Use with Flex CP721 locators
