New Fastener Review at Pipeline Design & Engineering

Fixtureworks Quarter-turn One-Touch Fasteners



One-Touch Fasteners



"Our mission statement here at Pipeline is to build equipment that R&D and manufacturing teams LOVE to use. One of the ways we do that is by using hardware that operators enjoy interacting with, like these quarter turn fasteners. We’ve used them for years and continue to do so not just because we like them, but because our customers love using them."





Product Video - Quarter-turn Fasteners, Limiting Knobs & More









FASTENER APPLICATION EXAMPLES - PIPELINE DESIGN & ENGINEERING



cc

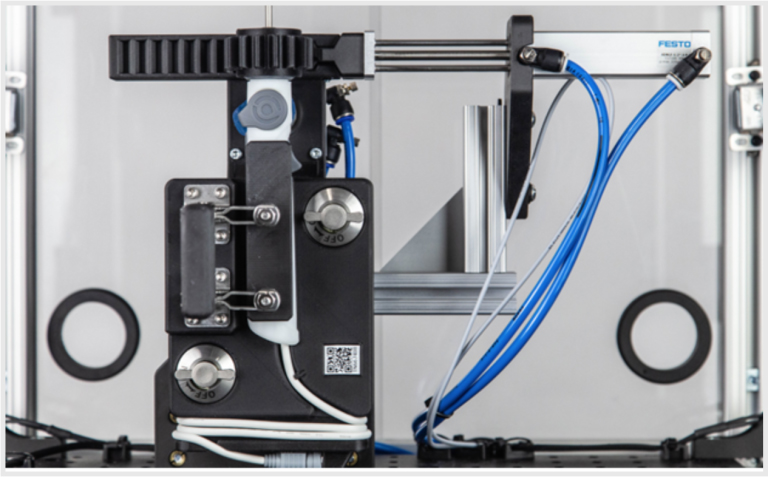

1. Quarter-turn fasteners used to attach device holder in cycle test machine



cc

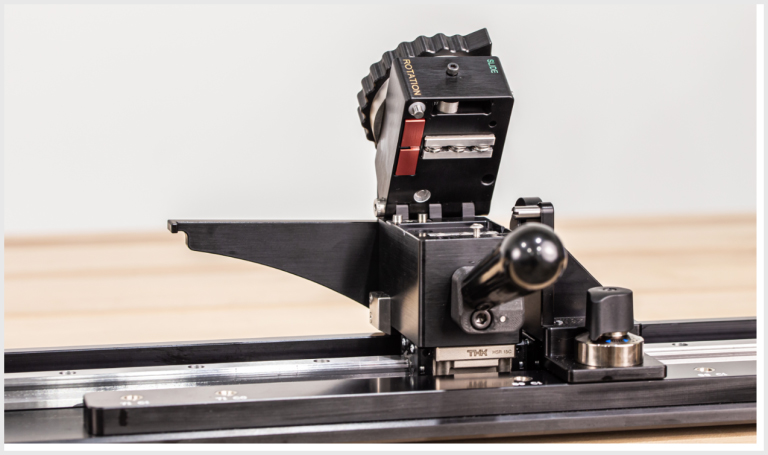

2. Quarter-turn fastener used to hold manufacturing fixture in multiple discrete locations.









READ THE QUARTER-TURN FASTENERS REVIEW AT PIPELINE

Visit the Pipeline Design & Engineering Website for text fixture design

Read the Quarter-turn Fasteners Product Review



One-Touch Fasteners Line up

QCWE

Fasteners

Ball lock, plastic or stainless knob

QCBU

Fasteners

Ball lock, recessed handle, steel

QCBU-SUS

Fasteners

Ball lock, button handle, stainless steel

QCBUS

Fasteners

Ball lock, cylindrical, steel or stainless

QCOW

Fasteners

Pin holding, snap-in, with or w/o dome, steel

QCHC

Fasteners

Expanding pin, stainless steel

QCTH

Quarter-Turn Fasteners

Plastic or stainless knob

QCTHL

Quarter-Turn Fasteners

Low profile, stainless steel knob

QCTHH

Quarter-Turn Fasteners

Low profile, internal hex head

QCTHA

Quarter-Turn Fasteners

Retractable, plastic or stainless knob

QCPC

Quarter-Turn Fasteners

Pin holding, plastic or stainless knob

QCTHS

Quarter-Turn Fasteners

Heavy duty, plastic or stainless knob

QCTHSA

Quarter-Turn Fasteners

Heavy duty, retractable, plastic or stainless knob

QCTHSA

Quarter-Turn Fasteners

Heavy duty, retractable, narrow body, plastic or stainless knob

QCPCS

Quarter-Turn Fasteners

Pin holding, heavy duty, plastic or stainless knob

QCSQ

Sliding Locks

Square bar, plastic knob or stainless handle

QCSL

Sliding Locks

Slotted hole, plastic or stainless knob
