One Touch Indexing Clamps


Combine easy clamping with precision locating.

New Lineup of Indexing Clamps, Plungers, Bushings

IMAO Fixtureworks, manufacturer and supplier of workholding components, offers a new lineup of One Touch Indexing Clamps for easy fastening and precision locating in a single operation where components slide or rotate into position. The tapered contact surfaces provide +/- 0.05 mm repeatability.


The quarter-turn knobs allow for quick locking and unlocking without the use of tools. The ON/OFF markings and perceptible "click" indicate the locked and unlocked states. Red indicator band is visible when fastener is in the OFF (unclamped) position.


The three-position versions feature coil spring pressure and includes a "MID" position on knob between the ON and OFF positions, allowing the plunger to snap into a hole when it slides into position. The spiral cam mechanism provides for high clamping forces (40 lbs) and a high allowable axial load (300 lbs).


The plungers can be used with precision tapered bushings for locating or a simple through-hole in a plate. The One Touch Indexing Clamps are available in flanged style to mount from the underside with three screws or a threaded style to mount in a tapped hole.


Specifications, CAD models, pricing and ordering are available online at Customers can also request a quote or technical product assistance.


IMAO Fixtureworks manufactures and supplies a wide assortment of unique industrial products that range from modular fixturing components and workholding devices, including clamps, workholding gripper inserts, supports, and locators, to standard machine elements, including pins, material handling rollers and bumpers, fasteners, adjustable handles, cam levers, and more.

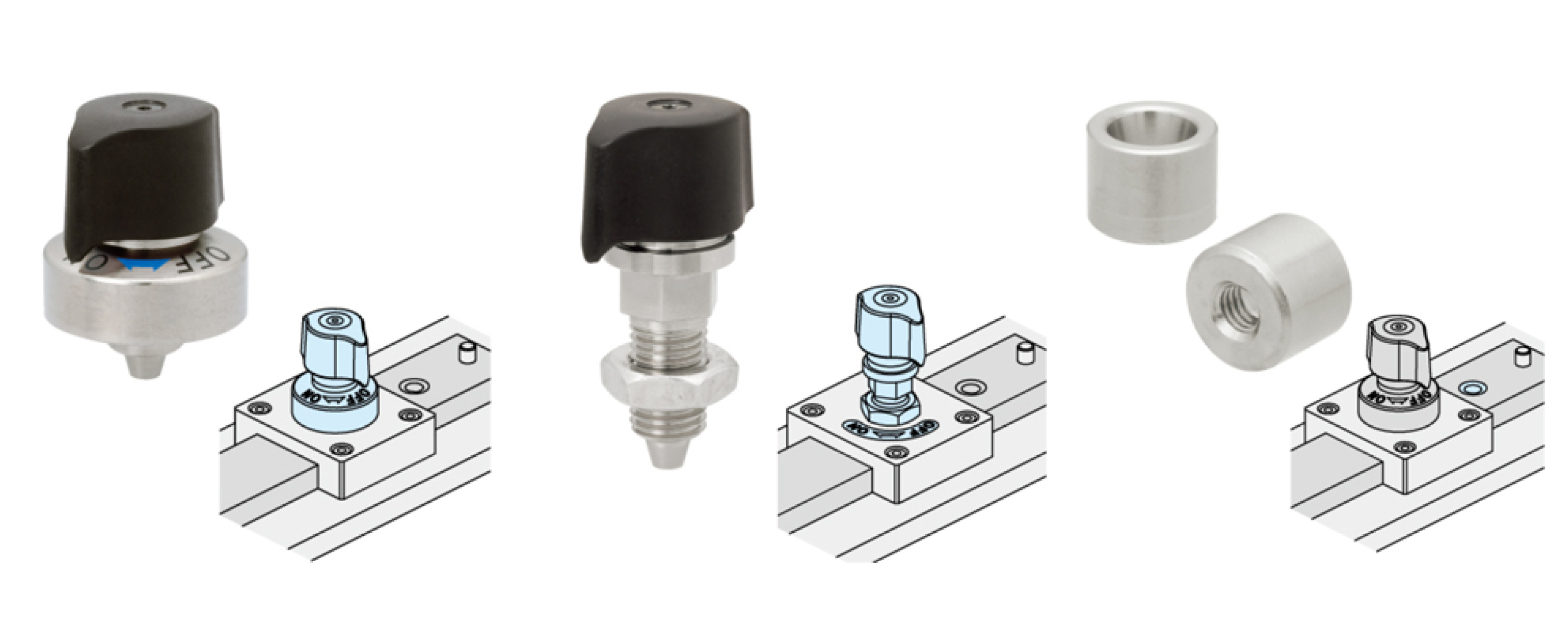

One Touch Indexing Clamps Lineup
